Stainless Steel Pipe Fittings-45 Elbow
Threaded Fittings
Nominal pressure: 1.6MPa
Be suitable object: WOG
Be suitable temperature: -60–450°F (-51–232°C)
Precision casting material:SS304、SS316
All fittings dimension confirm to ANSI B 16.3. Read more

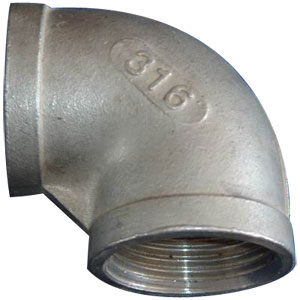

Stainless Steel Fittings-90 Elbow
Nominal pressure: 1.6MPa
Be suitable object: WOG
Be suitable temperature: -60–450°F (-51–232°C)
Precision casting material:SS304、SS316
All fittings dimension confirm to ANSI B 16.3.
Thread confirm to NPT,BSPT,DIN etc..
 Stainless Steel Pipe Fittings 90 Elbow Dimension |
||||||||||||
|
SIZE
|
1/8
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
11/4
|
11/2
|
2
|
21/2
|
3
|
4
|
|
A
|
19
|
19
|
22
|
28
|
30
|
36
|
44
|
48
|
55
|
67
|
77
|
96
|
